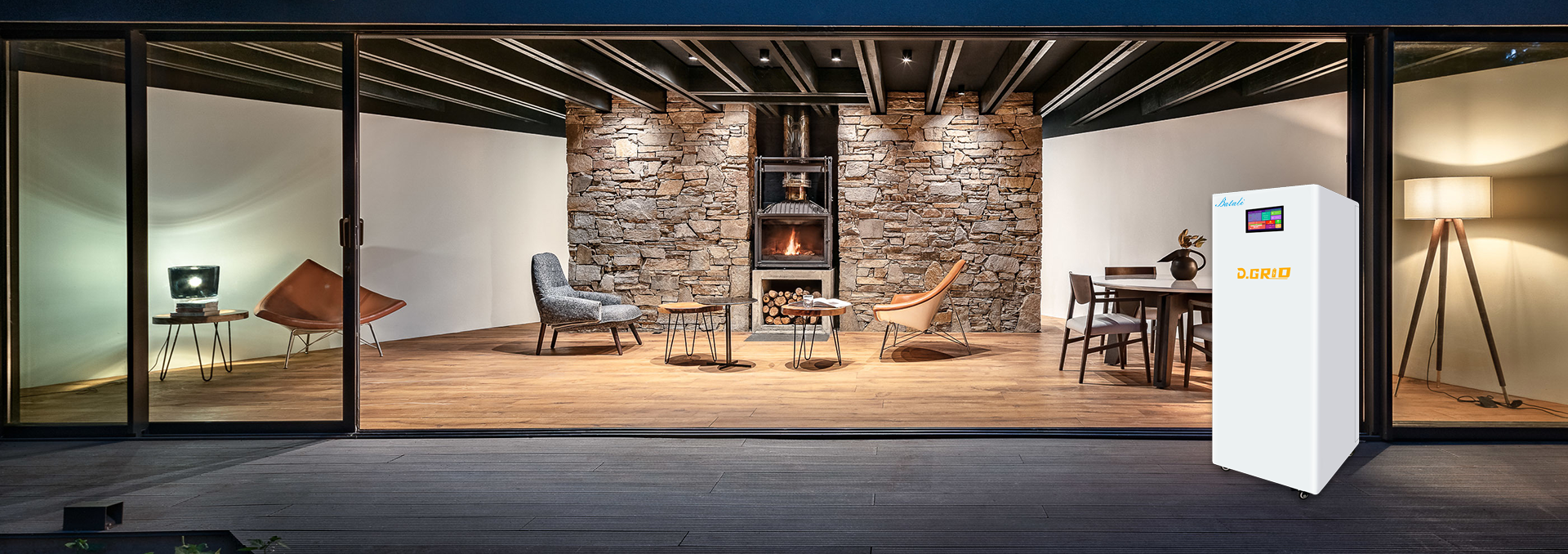

CABINET-BATTERY 47.10KWh

Can support 17 pieces batteries in parallel.

Adapted to over 90% of global inverter brands.

Battery parameters

Cell pack basic parameter

Pack Nominal Voltage/V

51.2V

Max Charge Voltage/V

3.65V

Cell Nominal Capacity/Ah

230Ah*4

Battery Pack Energy/KWh

47.10KWh(11.78KWh*4)

Cell Max Discharge Rate/C

1C

Cell Max Charge Rate/C

0.5C

Cell In Series

16*4

Cell In Parallel

1

Battery Pack Method

Laser welding

DOD

80%

Cycle Life

7000 times

Warranty

7 years

Battery Parameter

LED Display

7"color capacitive touch screen

BMS Type

Software RS485/CAN

USB

 WIFI（Support OTA）

Operating Voltage Range/V

44V-58.4V

Continuous Current/A

640A

Charge voltage(MAX)/V

58.4V

Type Current/A

800A

Continuous Current(MAX)/A

800A

Over Voltage/V

44V

Maximum Output Power/W

40 KW

Battery Dimension/MM

1335*580*550

Net Weight/KG

380KG

Chargr/Discharge Port

M8 Bolt

Temperature Protection

Discharging:-15-70℃；Charging:0-60℃
