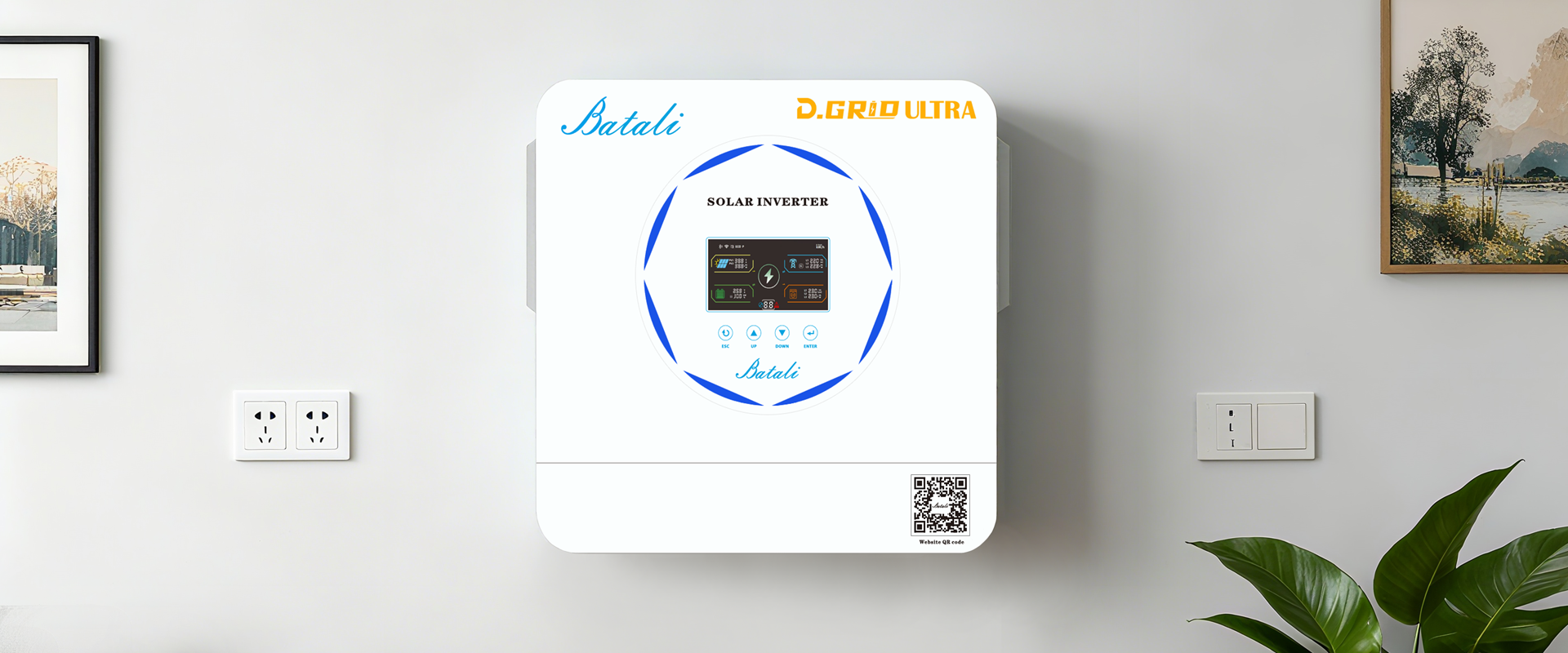

Solar Inverter   SI-3K-2P10-R1  24V3.6KW

Inverter Monitoring Management Platform

QR codes for downloading apps on Apple and Android phones

SMK WIFI 二维码
Technical Specifications

MODEL

SI-3K-2P10-R1

Rated Power

3600W

Communication

RS485/WIFI

AC Output

Max.Rated AC Output Power

3600W

Output Frequency and Voltage

50/60Hz / 230V  AC

Overload Protection

5s@≥140%load,10s@110%~140%load

Max.AC Current

15A

Grid Type

Single Phase

Battery

Battery Type

Lithium iron phosphate battery

Battery Voltage Range

20V~29.2V

Max.Charging Current

100A

Max.Discharging Current

140A

Charging Curve

CC /CV

PV String Input

Max.PV Input Power

4000W

PV Input Voltage

60V~500V

Max.PV Input Current

15A

Efficiency

Peak Eficiency

94%

Protection

PV String Input Reverse Polarity Protection

Integrated

Output Over Current Protection

Integrated

Output Shorted Protection

Integrated

Output Over Voltage Protection

Integrated

General Data

Operating Temperature Range

-25~60 ℃,>45℃ Derating

Cooling

Fan

Humidity

5% to 95% Relative Humidity ( Non-condensing)

Weight

7.3KG

Size

358mm*295mm*100mm

Installation Style

Wall-mounted
