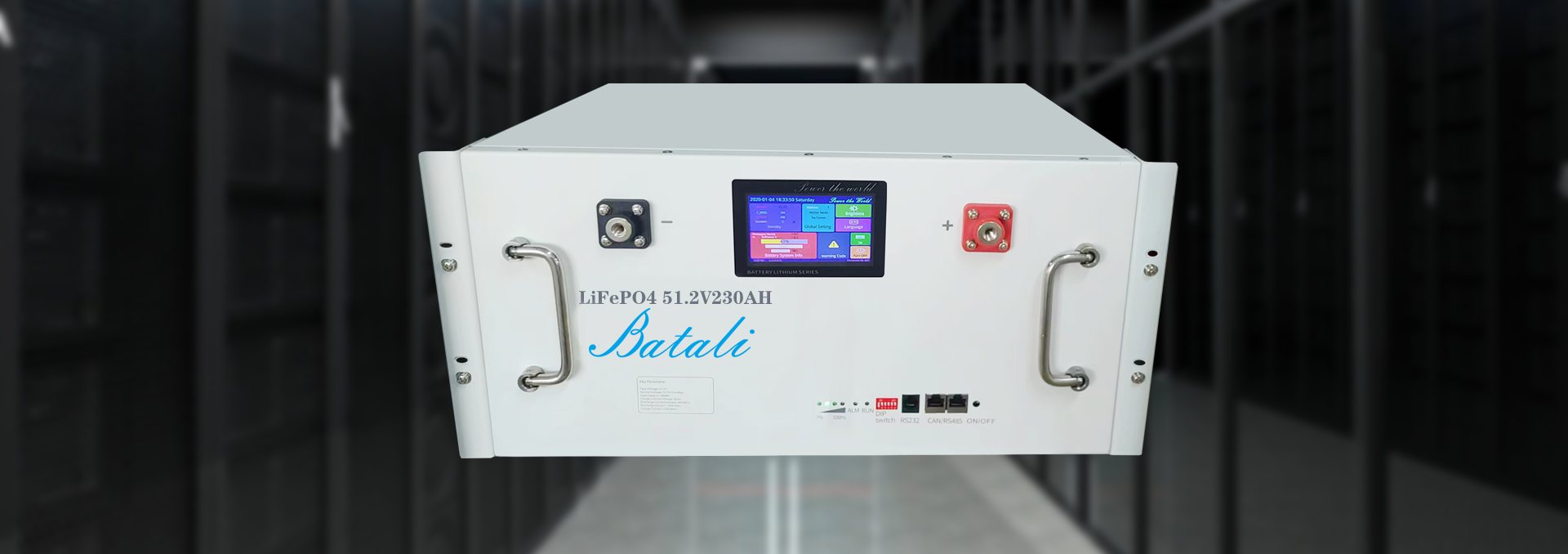

BA-39S-R  51.2V230Ah  11.78KWh

Can support 17 pieces batteries in parallel.

Adapted to over 90% of global inverter brands.

Battery parameters

Cell pack basic parameter

Pack Nominal Voltage/V

51.2V

Max Charge Voltage/V

3.65V

Cell Nominal Capacity/Ah

230Ah

Battery Pack Energy/KWh

11.78KWh

Cell Max Discharge Rate/C

1C

Cell Max Charge Rate/C

0.5C

Cell In Series

16

Cell In Parallel

1

Battery Pack Method

Laser welding

DOD

80%

Cycle Life

7000 times

Warranty

7 years

Battery Parameter

LED Display

3.5"color capacitive touch screen

BMS Type

Software RS485/CAN

USB

 WIFI（Support OTA）

Operating Voltage Range/V

44V-58.4V

Continuous Current/A

160A

Charge voltage(MAX)/V

58.4V

Type Current/A

200A

Continuous Current(MAX)/A

200A

Over Voltage/V

44V

Maximum Output Power/W

10 KW

Battery Dimension/MM

482*450*240

Net Weight/KG

79.7KG

Charge/Discharge Port

M8 Bolt

Temperature Protection

Discharging:-15-70℃；Charging:0-60℃
