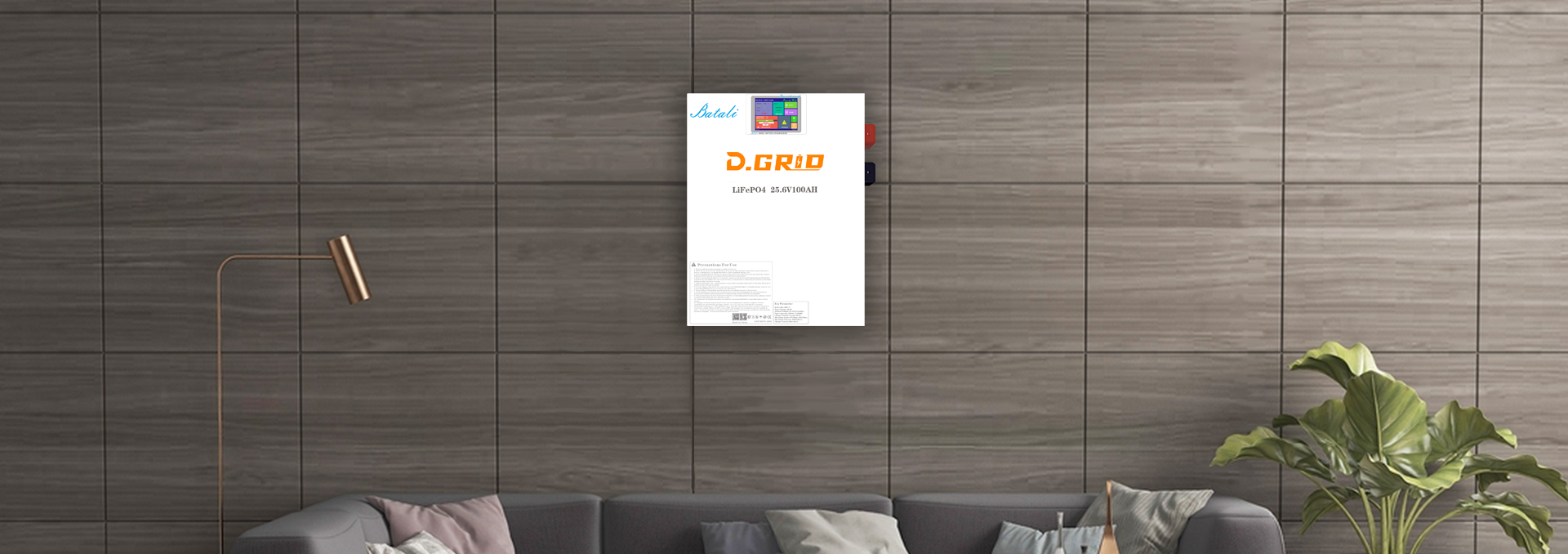

BA-22S-P  25.6V100Ah  2.56KWh

Can support 17 pieces batteries in parallel.

Adapted to over 90% of global inverter brands.

Battery parameters

Cell pack basic parameter

Pack Nominal Voltage/V

25.6V

Max Charge Voltage/V

3.65V

Cell Nominal Capacity/Ah

100Ah

Battery Pack Energy/KWh

2.56KWh

Cell Max Discharge Rate/C

1C

Cell Max Charge Rate/C

0.5C

Cell In Series

8

Cell In Parallel

1

Battery Pack Method

Laser welding

DOD

80%

Cycle Life

7000 times

Warranty

5 years

Battery Parameter

LED Display

2.8 " color capacitive touch screen

BMS Type

Software RS485/CAN

USB

Optional WIFI（Support OTA）

Operating Voltage Range/V

22V-29.2V

Continuous Current/A

90A

Charge voltage(MAX)/V

29.2V

Type Current/A

100A

Continuous Current(MAX)/A

100A

Over Voltage/V

22V

Maximum Output Power/W

2.5 KW

Battery Dimension/MM

367*279*152

Net Weight/KG

22.6KG

Charge/Discharge Port

M8 Bolt

Temperature Protection

Discharging:-15-70℃；Charging:0-60℃
